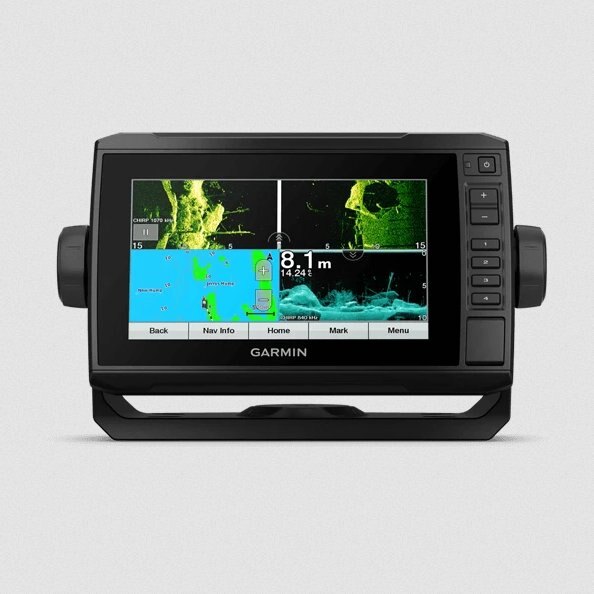

LESS TIME FINDING. MORE TIME FISHING. The sunlight-readable 7” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar. |
|
| Dimension | 9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm) |
|---|---|
| Touchscreen | |
| Input | Touchscreen with Keyed Assist |
| Display Size | 6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal) |
| Display Resolution | 800 x 480 pixels |
| Display Type | WVGA, NP |
| Weight |
1.7 lbs (0.77 kg) |
| Waterproof |
IPX7 |
| Mounting Options | Bail or flush |
| Accepts Data Cards |
2 microSD cards; 32 GB maximum size |
|---|---|
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Power output | 500 W |
|---|---|
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| SideVü | built-in 260/455/800/1000/1200 kHz |
| NMEA 2000 ports | 1 |
|---|---|
| Connections NMEA0183 Input Ports |
1 |
| NMEA 0183 input (Tx) ports | 1 |
| Garmin Marine Network Ports |
1 Panoptix™ port |
| 12-pin transducer ports | 1 |
|
|
ECHOMAP Ultra supports a variety of Garmin transducers (sold separately), including LiveScope all-seeing live sonar. |
|
The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths. |
|
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. |
|
Experience unparalleled coverage and detail with BlueChart g3 coastal charts for the U.S. and Western Canada and LakeVü g3 inland maps for the U.S. — both with integrated Navionics® data and Auto Guidance2 technology. |
|
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app3. |
|
If you have multiple compatible ECHOMAP Ultra 10” and 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data and charts — among them. |
|
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen. |
|
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1. |
|
Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter. |
|
Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit. |
|
Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer. |
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 0.8 A |
| Maximum current draw at 12 Vdc | 1.25 A |
| Maximum power usage at 10 Vdc | 15W |
Garmin ECHOMAP™ UHD 64cv
Garmin ECHOMAP™ Ultra 106sv
Garmin ECHOMAP™ Plus 44cv
Garmin VHF 215 Garmin AIS™ Marine Radio
Garmin AIS™ 800 Blackbox Transceiver

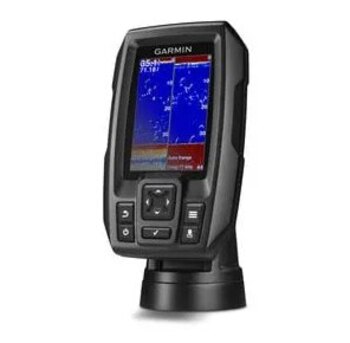

Garmin STRIKER™ 4 With Dual-beam Transducer
